BT829B, BT827B (BT827B / BT829B) VideoStreamII Decoders

Rockwell

Description

www.DataSheet4U.com Advance Information This document contains information on a product under development.The parametric information contains target.
1 1.

📥 Download Datasheet

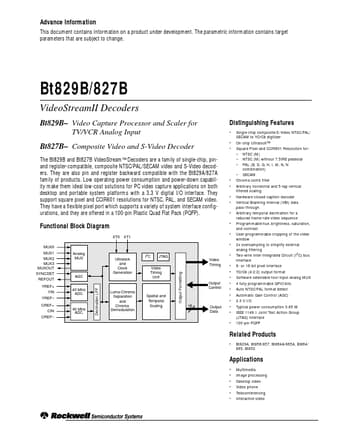

BT829B Datasheet Preview — This datasheet PDF includes multiple part numbers: BT829B, BT827B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BT829B, BT827B
Manufacturer: Rockwell
File Size: 902.36 KB
Datasheet: BT827B_Rockwell.pdf
Description: (BT827B / BT829B) VideoStreamII Decoders
Note: This datasheet PDF includes multiple part numbers: BT829B, BT827B.
Please refer to the document for exact specifications by model.

Features

* Single-chip composite/S-Video NTSC/PAL/ SECAM to YCrCb digitizer On-chip Ultralock™ Square Pixel and CCIR601 Resolution for:
* NTSC (M)
* NTSC (M) without 7.5IRE pedestal
* PAL (B, D, G, H, I, M, N, N combination)
* SECAM Chroma comb ﬁlte

Applications

* on both desktop and portable system platforms with a 3.3 V digital I/O interface. They support square pixel and CCIR601 resolutions for NTSC, PAL, and SECAM video. They have a ﬂexible pixel port which supports a variety of system interface conﬁgurations, and they are offered in a 100-pin Plastic Qua
