CAT6611

Single-Link HDMI Transmitter

CAT6611 Features

* Single channel HDMI transmitter Compliant with HDMI 1.1, HDCP 1.1 and DVI 1.0 specifications Supporting pixel rates from 25MHz to 165MHz DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA Various video input interface supporting digital v

CAT6611 General Description

The CAT6611 is a high-performance and low-cost single channel HDMI transmitter, fully compliant with HDMI 1.1, HDCP 1.1 and backward compatible to DVI 1.0 specifications. The CAT6611 serves to provide the most cost-effective HDMI solution for DTV-ready consumer electronics such as settop boxes, DVD .

CAT6611 Datasheet (690.38 KB)

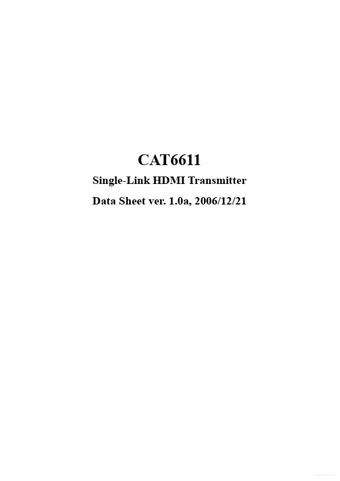

Preview of CAT6611 PDF

Datasheet Details

Part number:

CAT6611

Manufacturer:

ETC

File Size:

690.38 KB

Description:

Single-link hdmi transmitter.
CAT6611 Single-Link HDMI Transmitter Data Sheet ver. 1.0a, 2006/12/21 Free Datasheet http://www.datasheet4u.com/ CAT6611 Single-Link HDMI Transmitte.
