CAT6023

Dual-Port HDMI 1.3 Receiver

CAT6023 Features

* Dual-port HDMI 1.3 receiver

* Compliant with HDMI 1.3a, HDCP 1.2 and DVI 1.0 specifications

* Supporting link speeds of up to 2.25Gbps (link clock rate of 225MHz).

* Video output interface supporting digital video standards such as:

* 24/30/36-bit RGB/YCbCr 4:4:4

* 16/20/24

CAT6023 General Description

The CAT6023 is a dual-port HDMI 1.3 receiver, fully compatible with HDMI 1.3, HDCP 1.2 and backward compatible to DVI 1.0 specifications. The CAT6023 with its Deep Color capability (up to 36-bit) ensures robust reception of high-quality uncompressed video content, along with state-of-the-art uncompr.

CAT6023 Datasheet (891.07 KB)

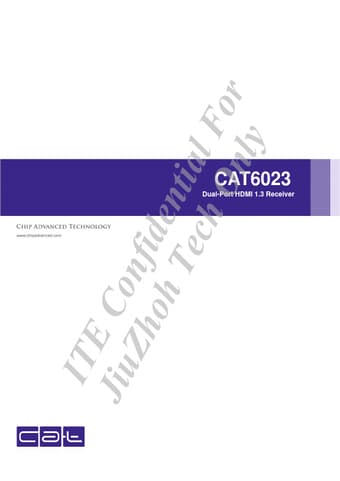

Preview of CAT6023 PDF

Datasheet Details

Part number:

CAT6023

Manufacturer:

Chip Advanced Technology

File Size:

891.07 KB

Description:

Dual-port hdmi 1.3 receiver.
JiIuTZEhCohonTfeidchenOtinallyFor CAT6023 Dual-Port HDMI 1.3 Receiver JiIuTZEhoChonTfiecdehntOianllyFor CAT6023 Preliminary Datasheet General Descr.
