CAT7105, 2.0A High Efficiency Step-Down DC/DC Converter

CAT7105 2.0A High Efficiency Step-Down DC/DC Converter Free Datasheet http://www.datasheet4u.com/ CAT7105 2.0A High Efficiency Step-Down DC/DC Conve.
The CAT7105 is a high efficiency and high output current step-down DC/DC converter that integrates a low resistance high side NMOS.

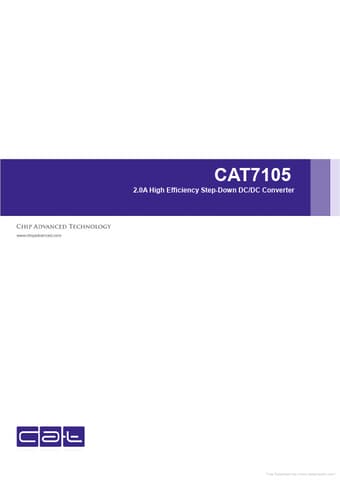

datasheet Preview Page 1 from Datasheet4u.com

CAT7105_ChipAdvancedTechnology.pdf

CAT7105 Datasheet Preview — Preview of CAT7105 PDF

Datasheet Details

Part number:

CAT7105

Manufacturer:

Chip Advanced Technology

File Size:

737.02 KB

Description:

2.0A High Efficiency Step-Down DC/DC Converter

Features

* High Efficiency up to 95% 4.75V to 23V Wide Input Voltage Range Output Adjustable from 1.23 to 21V 2.0A Output Current 380kHz constant Frequency Operation Current Mode Operation Over-temperature Protected Over Current Protection Under Voltage Lockout 25µA Shutdown Current SOP8 Package RoHS Compliant

Applications

* shall be customer design-in orientation to fit each customers demand. Based on the nature of customers demand-oriented, please contact CAT or agent for design support service. R1 V out=5V V out=3.3V V out=1.8V 68K 16.8K 4.7K 22K 10K 10K R2 15K 10K 5.6K R3 2nF 2nF 1nF C8 15uH 6uH L1 4.7uH The
