CAT7117 Datasheet - Chip Advanced Technology

Dual Channel 800mA High Efficiency Step-Down DC/DC Converter

CAT7117 Features

* High Efficiency up to 95% Low Quiescent Current < 300uA (active mode) 2.5V to 5.5V Input Voltage Range 800mA Output Current on each Channel Fix Frequency Operation Full Duty ratio, 0

* 100% in Dropout 0.6V Reference Allows Low Output Voltages Current Mode Operation Internal soft-start Over-t

CAT7117 General Description

The CAT7117 is a high efficiency step-down DC/DC converter using a constant frequency, current mode architecture. The device integrates a main switch and a synchronous rectifier for high efficiency without an external schottky diode. Supply current during operation is only 300µA and drops to < 1µA i.

CAT7117 Datasheet (364.36 KB)

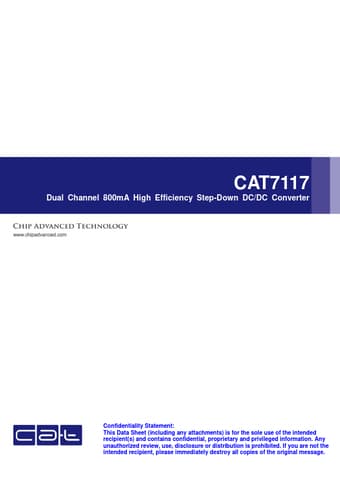

CAT7117 Datasheet Preview — Preview of CAT7117 PDF

Datasheet Details

Part number:

CAT7117

Manufacturer:

Chip Advanced Technology

File Size:

364.36 KB

Description:

Dual channel 800ma high efficiency step-down dc/dc converter.
CAT7117 Dual Channel 800mA High Efficiency Step-Down DC/DC Converter Confidentiality Statement: This Data Sheet (including any attachments) is for the.
