CAT705 - Supervisory Circuits

CAT705 Description

CAT705, CAT706, CAT813 µP Supervisory Circuits .
The CAT705, CAT706, and CAT813 provide reset and monitoring functions for the electronic systems.

CAT705 Features

* Accurate under voltage system monitoring ¯¯¯¯¯¯ guaranteed valid for VCC = 1.0V
* RESET
* 6µA supply current www. DataSheet4U. com

CAT705 Applications

* Microprocessor and microcontroller based systems
* Intelligent instruments
* Control systems
* Critical µP monitors
* Portable equipment PIN CONFIGURATION SOIC 8-Lead MR VCC GND PFI 1 2 3 4 8 7 6 5 WDO RESET (RESET for CAT813) PIN FUNCTIONS Pin Name ¯¯¯ MR

📥 Download Datasheet

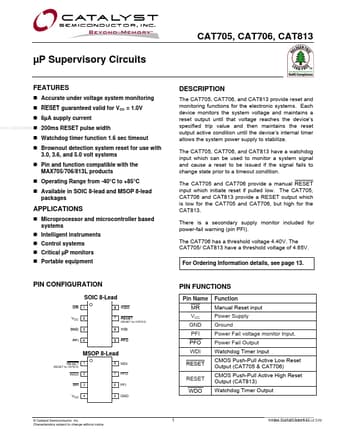

Preview of CAT705 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAT705
Manufacturer
Catalyst Semiconductor
File Size
269.62 KB
Datasheet
CAT705_CatalystSemiconductor.pdf
Description
Supervisory Circuits
