CAT7580 Datasheet, controller equivalent, Chip Advanced Tech

PDF File Details

Part number: CAT7580

Manufacturer: Chip Advanced Tech

File Size: 574.59KB

Download: 📄 Datasheet

Description: Synchronous and Rectified Buck PWM Controller

Datasheet Preview: CAT7580 📥 Download PDF (574.59KB)

CAT7580 Features and benefits

‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ ‹ The CAT7580 is available in an 8-pin SOIC package. Input Voltage Range from 4.5 V to 13.2 V 320 kHz Internal Oscillator Boost Pin Operate.

CAT7580 Application

shall be customer design-in orientation to fit each customers demand. Based on the nature of customers demand-oriented, .

CAT7580 Description

The CAT7580 is a voltage mode PWM controller designed to operate from a 5.0 V to 12.0 V supply and produce an output voltage as low as 0.8 V. This 8-pin device provides an optimal level of integration to reduce size and cost of the power supply. The.

Image gallery

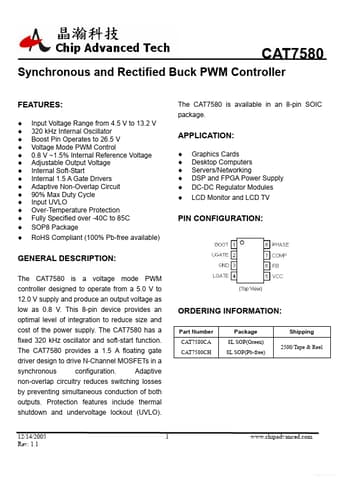

Page 2 of CAT7580 Page 3 of CAT7580
