CAT6220, 300mA Adjustable Voltage LDO Regulator

CAT6220 300 mA Adjustable Voltage LDO Regulator .
The CAT6220 is a 300 mA CMOS low dropout regulator whose output voltage is user adjustable that provides fast response time during load current and li.

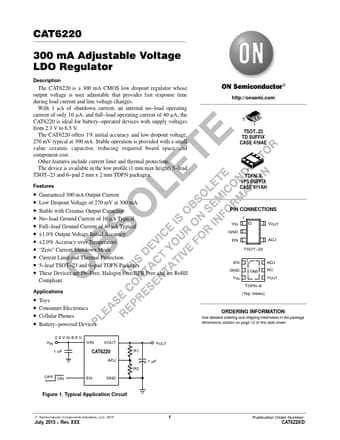

datasheet Preview Page 1 from Datasheet4u.com

CAT6220-ONSemiconductor.pdf

CAT6220 Datasheet Preview — Preview of CAT6220 PDF

Datasheet Details

Part number:

CAT6220

Manufacturer:

ON Semiconductor ↗

File Size:

474.98 KB

Description:

300mA Adjustable Voltage LDO Regulator

Features

* include current limit and thermal protection. The device is available in the low profile (1 mm max height) 5
* lead TSOT
* 23 and 6
* pad 2 mm x 2 mm TDFN packages. Features
* Guaranteed 300 mA Output Current
* Low Dropout Voltage of 270 mV at 300 mA
* Stabl

Applications

* Toys
* Consumer Electronics
* Cellular Phones
* Battery
* powered Devices 2.3 V to 6.5 V VIN 1 mF VIN VOUT CAT6220 ADJ OFF ON EN GND VOUT R1 1 mF R2 Figure 1. Typical Application Circuit http://onsemi. com 5 1 TSOT
