CXD304-106Q Datasheet - ETC

CXD304-106Q CMOS 10-Bit Pedestal Level Replacement of Composite Signal

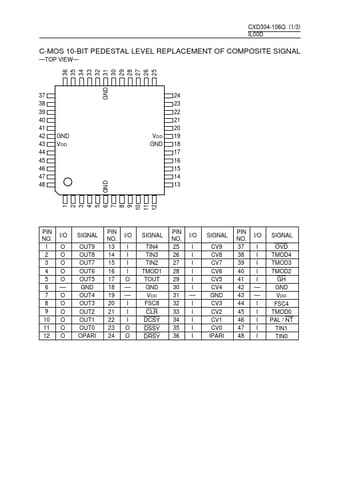

CXD304-106Q (1/3) IL00D C-MOS 10-BIT PEDESTAL LEVEL REPLACEMENT OF COMPOSITE SIGNAL TOP VIEW 36 35 34 33 32 31 30 29 28 27 26 25 PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 GND 37 38 39 40 41 42 43 44 45 46 47 48 GND GND VDD VDD GND 24 23 22 21 20 19 18 17 16 15 14 13 I/O O O O O O O O O O O O SIGNAL OUT9 OUT8 OUT7 OUT6 OUT5 GND OUT4 OUT3 OUT2 OUT1 OUT0 OPARI PIN NO. 13 14 15 16 17 18 19 20 21 22 23 24 I/O I I I I O I.

CXD304-106Q Datasheet (42.87 KB)

CXD304-106Q Datasheet Preview — Preview of CXD304-106Q PDF

Datasheet Details

Part number:

CXD304-106Q

Manufacturer:

ETC

File Size:

42.87 KB

Description:

Cmos 10-bit pedestal level replacement of composite signal.
