CXD3005R - CD Digital Signal Processor with Built-in Digital Servo and DAC

Sony Corporation

Datasheet Details

Part number	CXD3005R
Manufacturer	Sony Corporation
File Size	1.64 MB
Description	CD Digital Signal Processor with Built-in Digital Servo and DAC
Datasheet	CXD3005R_SonyCorporation.pdf

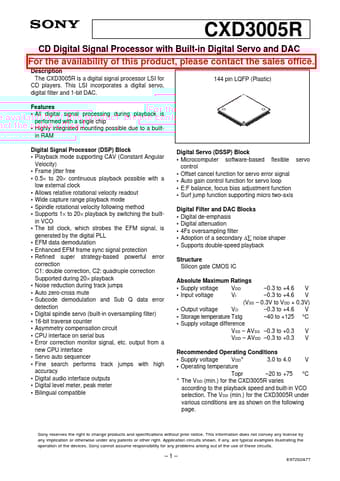

The CXD3005R is a digital signal processor LSI for CD players.

All digital signal processing during playback is performed with a single chip.
Highly integrated mounting possible due to a builtin RAM Digital Signal Processor (DSP) Block.
Playback mode supporting CAV (Constant Angular Velocity).
Frame jitter free.
0.5× to 20× continuous playback possible with a low external clock.
Allows relative rotational velocity readout.
Wide capture range playback mode.
Spindle rotational velocity f.
