CXD3141R Datasheet - Sony

Signal Processor LSI

CXD3141R Features

* Generates timing pulses to drive the 510H CCD image sensor Sync signal generation function Luminance/chroma signal processing Luminance/chroma signal integral detector Automatically control camera function

* Supports NTSC/PAL modes

* Supports 510H system CCD image sensor

CXD3141R General Description

The CXD3141R is a signal processor LSI for Ye, Cy, Mg and G single-chip CCD color cameras. In addition to basic camera signal processing functions, it includes an AE/AWB detection circuit, a sync signal generation circuit and an external sync circuit, etc. This chip also has a built-in microcontroll.

CXD3141R Datasheet (687.48 KB)

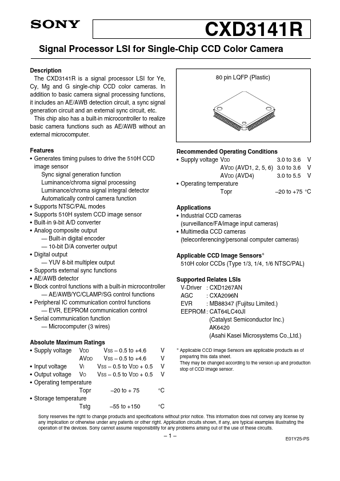

CXD3141R Datasheet Preview — Preview of CXD3141R PDF

Datasheet Details

Part number:

CXD3141R

Manufacturer:

Sony

File Size:

687.48 KB

Description:

Signal processor lsi.
