CXD3172AR Datasheet - Sony

Signal Processor LSI

CXD3172AR Features

* Generates timing pulses to drive the single CCD image sensor Built-in H/V driver for CCD image sensor Luminance/chroma signal processing

* Supports NTSC/PAL modes

* Supports 510H/760H system CCD image sensor

* Built-in 10-bit A/D converter

* Built-in EVR (3c

CXD3172AR General Description

The CXD3172AR is a signal processor LSI for Ye, Cy, Mg and G single CCD color cameras. In addition to basic camera signal processing functions, it includes an AE/AWB detection circuit, a sync signal generation circuit and an external sync circuit, etc. This chip also has a built-in microcontroller t.

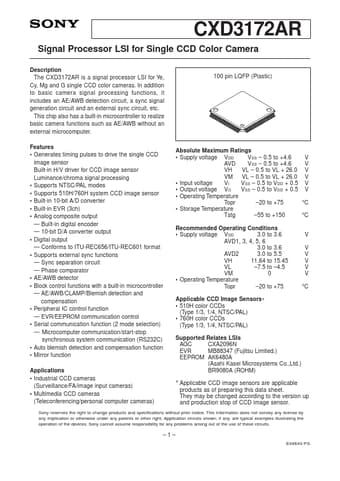

CXD3172AR Datasheet (368.09 KB)

CXD3172AR Datasheet Preview — Preview of CXD3172AR PDF

Datasheet Details

Part number:

CXD3172AR

Manufacturer:

Sony

File Size:

368.09 KB

Description:

Signal processor lsi.
