CXD3009Q - CD Digital Signal Processor

Sony Corporation

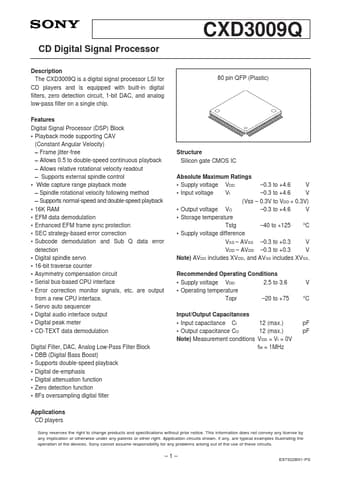

CXD3009Q Datasheet Preview — Preview of CXD3009Q PDF

Datasheet Details

Part number	CXD3009Q
Manufacturer	Sony Corporation
File Size	515.22 KB
Description	CD Digital Signal Processor
Datasheet	CXD3009Q_SonyCorporation.pdf

CXD3009Q Product details

Description

The CXD3009Q is a digital signal processor LSI for CD players and is equipped with built-in digital filters, zero detection circuit, 1-bit DAC, and analog low-pass filter on a single chip.

Features

Digital Signal Processor (DSP) Block.
Playback mode supporting CAV (Constant Angular Velocity).
Frame jitter-free.
Allows 0.5 to double-speed continuous playback.
Allows relative rotational velocity readout.
Supports external spindle control.
Wide capture range playback mode.
Spindle rotational velocity following method.
Supports normal-speed and double-speed playback.
16K RAM.
EFM data demodulation.
