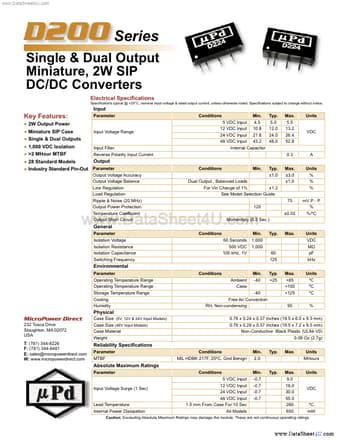

D213 Datasheet, Converters, ETC

D213 Features

• Converters Parameter Conditions Min. Typ. Max. 5.5 13.2 26.4 52.8 0.3 Units
• 2W Output Power
• Miniature SIP Case Input Voltage Range
• Single & Dual Outputs

PDF File Details

Part number:

D213

Manufacturer:

ETC

File Size:

128.64kb

Download:

📄 Datasheet

Description:

Single & dual output miniature 2w sip dc/dc converters.

D213 Application

• Applications An output capacitor (1.0 µF to 10 µF) may be used to reduce ripple. The 48V input models require an input capacitor of 4.7 uF to 47 uF
