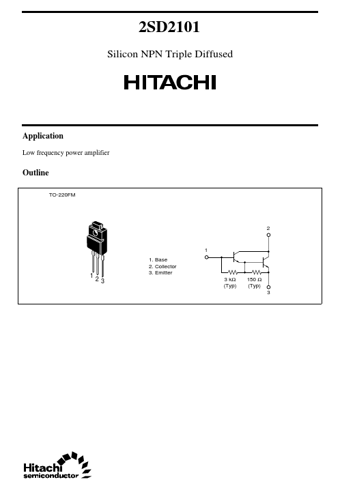

2SD2101 Silicon NPN Triple Diffused Application Low frequency power amplifier Outline TO-220FM 2 1 1.

Base 2.

Collector 3.

Emitter 12 3 3 kΩ (Typ) 150 Ω (Typ) 3 2SD2101 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1.

Value at TC = 25°C.

Tj Tstg 1 Ratin
