D2103S - Thyristors / Rectifiers

Product Overview

RCA

📥 Download Datasheet

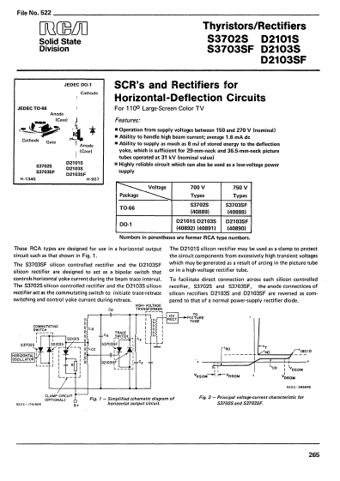

D2103S Thyristors / Rectifiers by RCA - Datasheet Preview — Datasheet preview – D2103S

Datasheet Details

Part number	D2103S
Manufacturer	RCA
File Size	341.40 KB
Description	Thyristors / Rectifiers
Datasheet	D2103S Datasheet
Note	This datasheet PDF includes multiple part numbers: D2103S, D2101S. Please refer to the document for exact specifications by model.
Additional preview pages of the D2103S datasheet.

Product details

Features

Operation from supply voltages between 150 and 270 V (nominal).
Ability to handle high beam current; average 1.6 mA dc.
Ability to supply as much as 8 mJ of s10red energy to the deflection yoke. which is sufficient for 29.
mm.
neck and 36.5.
mm.
neck picture tubes operated at 31 kV (nominal valuel " Highly reliable circuit which can also be used as a low.
voltage power supply ~Package 700V Types 750 V Types TO.
66 83702S (408891 S3703SF (40888.
