D2103 2SD2103

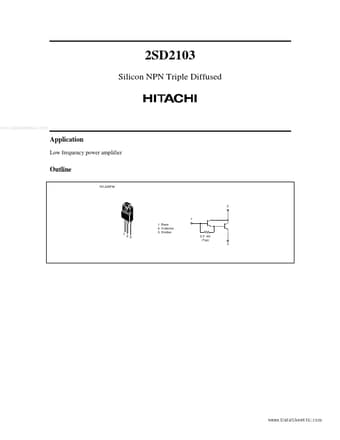

2SD2103 Silicon NPN Triple Diffused www.DataSheet4U.com Application Low frequency power amplifier Outline TO-220FM 2 1 1. Base 2. Collector 3. Emitter 12 3 2.2 kΩ (Typ) 3 2SD2103 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current www.DataSheet4U.com Symbol VCBO VCEO VEBO IC IC(peak) PC PC 1 Rating 60 60 7 8 12 2 25 150 55 to +150 Unit V V V A A W Collector powe.
