D2136 - 2SD2136

D2136 Description

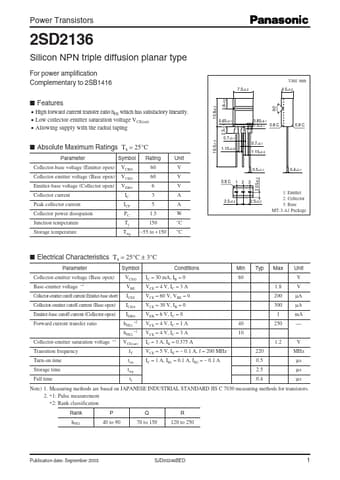

www.DataSheet.co.kr Power Transistors 2SD2136 Silicon NPN triple diffusion planar type For power amplification Complementary to 2SB1416 7.5±0.2 Uni.

D2136 Features

* 3.8±0.2 0.8 C 0.7±0.1 0.7±0.1 1.15±0.2 1.15±0.2
* Absolute Maximum Ratings Ta = 25°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emitter-base voltage (Collector open) Collector current Peak collector current Collector power dissipation Junction tempe

D2136 Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff
