D5201C - UPD5201C

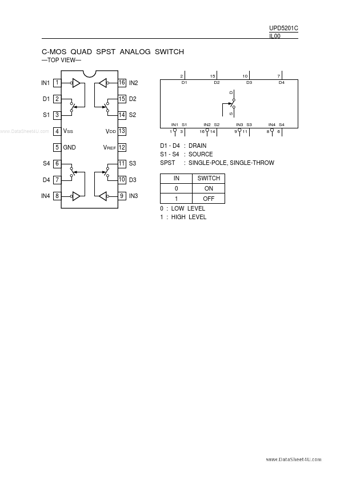

UPD5201C IL00 C-MOS QUAD SPST ANALOG SWITCH TOP VIEW 2 D1 15 D2 D 10 D3 7 D4 IN1 1 D1 2 S1 3 www.DataSheet4U.com 16 IN2 15 D2 14 S2 IN1 S1 IN2 S2 16 14 S IN3 S3 9 11 IN4 S4 8 6 4 VSS 5 GND VDD 13 VREF 12 11 S3 10 D3 9 IN3 1 3 S4 6 D4 7 IN4 8 D1 - D4 : DRAIN S1 - S4 : SOURCE SPST : SINGLE-POLE, SINGLE-THROW IN 0 1 SWITCH ON OFF 0 : LOW LEVEL 1 : HIGH LEVEL
