DT3-4 - Thermoelectric Cooler

www.DataSheet4U.com marlow industries inc.® DT3-4 Thermoelectric Cooler Performance Values Hot Side Temperature (°C) ∆ Tmax (°C-dry N2): Qmax (watts): Imax (amps): Vmax (vdc): AC Resistance (ohms): 27°C 65 9 3.7 3.6 0.8 50°C 73 10 3.7 4.1 - Mechanical Characteristics Lapped Unlapped TOP VIEW .807 [20.5] .630 [16] Height .131 ± .001[0.03] .135 ± .005[0.13] Flatness .001[0.03]. .002[0.05] Parallelism .002[0.05] .003[0.08] .630 [16] Cold Side 4.00 + .5 Negative Positive Hot Side .

DT3-4 Features

* Solid state reliability Built with high temperature solder with the ability to withstand higher assembly processing temperatures for short periods of time (

DT3-4_ETC.pdf

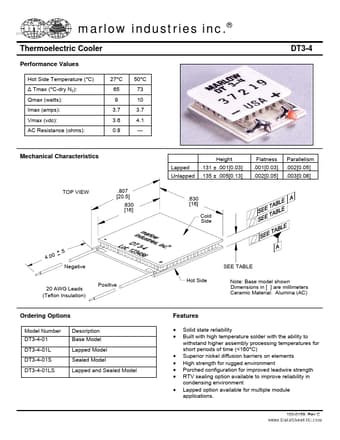

DT3-4 Datasheet Preview — Preview of DT3-4 PDF

Datasheet Details

Part number:

DT3-4

Manufacturer:

ETC

File Size:

155.22 KB

Description:

Thermoelectric cooler.
