DT3-8 Thermoelectric Cooler

www.DataSheet4U.com marlow industries inc.® DT3-8 Thermoelectric Cooler Performance Values Hot Side Temperature (°C) ∆ Tmax (°C-dry N2): Qmax (watts): Imax (amps): Vmax (vdc): AC Resistance (ohms): 27°C 65 17 7.4 3.6 0.4 50°C 73 19 7.4 4.1 - Mechanical Characteristics Height Lapped Unlapped .139 ± .001[0.03] .143 ± .005[0.13] Flatness .001[0.03]. .002[0.05] Parallelism .002[0.05] .003[0.08] TOP VIEW .965 [24.5] .787 [20] .787 [20] Cold Side 4.00 + .5 Negative Positive Hot Sid.

DT3-8 Features

* Solid state reliability Built with high temperature solder with the ability to withstand higher assembly processing temperatures for short periods of time (

DT3-8 Datasheet (153.46 KB)

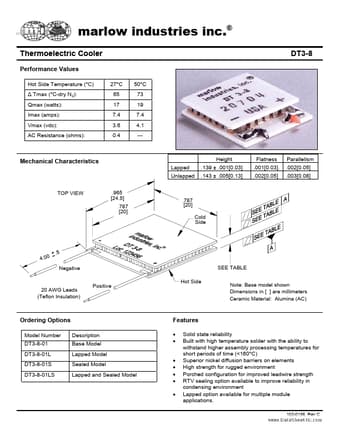

Preview of DT3-8 PDF
DT3-8 Datasheet Preview Page 2

Datasheet Details

Part number:

DT3-8

Manufacturer:

ETC

File Size:

153.46 KB

Description:

Thermoelectric cooler.
