DT3-6 - Thermoelectric Cooler

www.DataSheet4U.com marlow industries inc.® DT3-6 Thermoelectric Cooler Performance Values Hot Side Temperature (°C) ∆ Tmax (°C-dry N2): Qmax (watts): Imax (amps): Vmax (vdc): AC Resistance (ohms): 27°C 65 13 5.6 3.6 0.5 50°C 73 14 5.6 4.1 - Mechanical Characteristics Lapped Unlapped Height .154 ± .001[0.03] .158 ± .005[0.13] Flatness .001[0.03]. .002[0.05] Parallelism .002[0.05] .003[0.08] TOP VIEW .965 [24.5] .787 [20] .787 [20] Cold Side 4. 00 + .5 Negative Positive Hot Sid.

DT3-6 Features

* Solid state reliability Built with high temperature solder with the ability to withstand higher assembly processing temperatures for short periods of time (

DT3-6_ETC.pdf

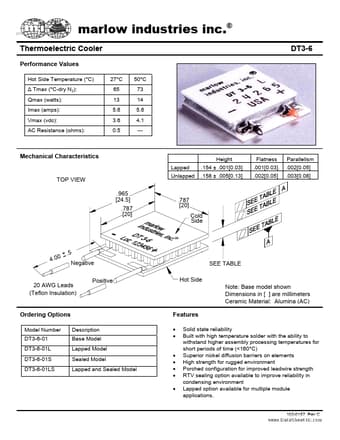

DT3-6 Datasheet Preview — Preview of DT3-6 PDF

Datasheet Details

Part number:

DT3-6

Manufacturer:

ETC

File Size:

216.59 KB

Description:

Thermoelectric cooler.
