EI1805I020-1 - Proximity Sensors Inductive Analogue Position Sensor

This page provides the datasheet information for the EI1805I020-1, a member of the EI1805I020 Proximity Sensors Inductive Analogue Position Sensor family.

Datasheet Summary

Description

Cylindrical analogue position sensor in M 18 and M 30 nickel-plated brass housings.

High degree of linearity, output current 0 to 20 mA.

Can be extended with level amplifier relay S 183 and analogue display to make up complete measuring systems.

📥 Download Datasheet

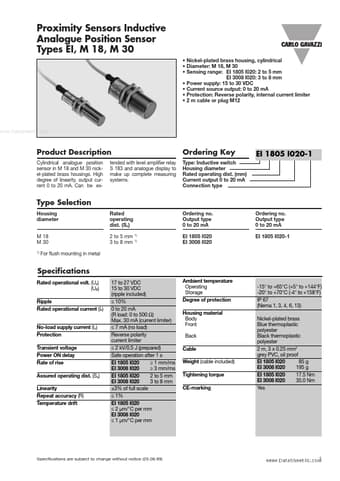

Datasheet preview – EI1805I020-1

Datasheet Details

Part number EI1805I020-1
Manufacturer ETC
File Size 103.24 KB
Description Proximity Sensors Inductive Analogue Position Sensor
Datasheet download datasheet EI1805I020-1 Datasheet
Additional preview pages of the EI1805I020-1 datasheet.

📁 Similar Datasheet

  • EI16C450 - Universal Asynchronous Receiver (IMP)
  • EI16C550 - FIFO UART (IMP)
  • EI16C552 - Dual FIFO UART and Parallel Port (IMP)
  • EI16C554 - QUAD UART (IMP)
  • EI16LC05 - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network (IMP)
  • Ei16LC05C - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network (IMP)
  • Ei16LC08C - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network (IMP)
  • Ei16LC12C - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network (IMP)
  • Ei16LC15C - Low Capacitance/ Bidirectional/ Eight Line Monolithic TVS Diode Network (IMP)
Other Datasheets by ETC
  • EI1808NPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing
  • EI1808PPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing
  • EI1202NPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing
  • EI1202PPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing
  • EI1204NPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing
  • EI1204PPOSS-1 - Proximity Sensors Inductive Stainless Steel Housing

Full PDF Text Transcription

Click to expand full text
Proximity Sensors Inductive Analogue Position Sensor Types EI, M 18, M 30 • Nickel-plated brass housing, cylindrical • Diameter: M 18, M 30 • Sensing range: EI 1805 I020: 2 to 5 mm EI 3008 I020: 3 to 8 mm • Power supply: 15 to 30 VDC • Current source output: 0 to 20 mA • Protection: Reverse polarity, internal current limiter • 2 m cable or plug M12 www.DataSheet4U.com Product Description Cylindrical analogue position sensor in M 18 and M 30 nickel-plated brass housings. High degree of linearity, output current 0 to 20 mA. Can be extended with level amplifier relay S 183 and analogue display to make up complete measuring systems. Ordering Key Type: Inductive switch Housing diameter Rated operating dist.
