EI16C550 Datasheet - IMP

FIFO UART

EI16C550 Features

* ï ï ï ï 5V Operation Full duplex asynchronous receiver and transmitter Easily interfaces to most popular microprocessors Adds or deletes standard asynchronous communication bits (start, stop, and parity) to or from a serial data stream Independently controlled transmitter, receiver, line status, and

EI16C550 General Description

The Epic Ei16C550 Universal Asynchronous Receiver Transmitter (UART) is a CMOS-VLSI communication device in a single package. The UART performs serial to parallel conversion on data characters received from a peripheral device or a MODEM, and parallel-to-serial conversions on data characters receive.

EI16C550 Datasheet (44.63 KB)

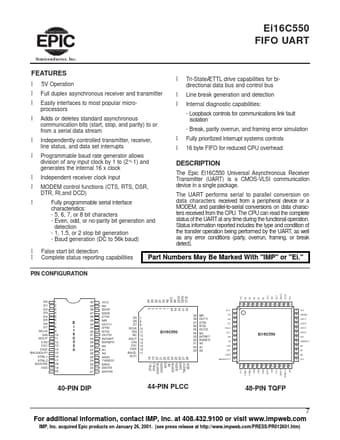

Preview of EI16C550 PDF

Datasheet Details

Part number:

EI16C550

Manufacturer:

IMP

File Size:

44.63 KB

Description:

Fifo uart.
