EI1808NPOSS-1, EI1808PPOSS-1 Datasheet - ETC

EI1808NPOSS-1 Proximity Sensors Inductive Stainless Steel Housing

Proximity switch in housings ranging from M12 to M30. Short or long versions in standard stainless steel housing. Made after Euronorm EN 50 008. Ordering Key Type Housing diameter (mm) Rated operating dist. (mm) Output type Housing material Body style Plug EI 1202 NPOSS-1 Type Selection DC Types,.

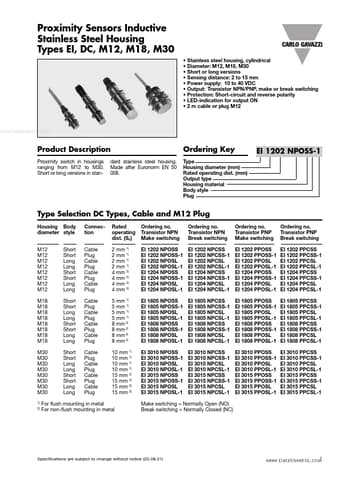

Proximity Sensors Inductive Stainless Steel Housing Types EI, DC, M12, M18, M30 Stainless steel housing, cylindrical Diameter: M12, M18, M30 Short or long versions Sensing distance: 2 to 15 mm Power supply: 10 to 40 VDC Output: Transistor NPN/PNP, make or break switching Protection: Short-circuit and reverse polarity LED-indication for output ON 2 m cable or plug M12 www.DataSheet4U.com Product Descriptio.

EI1808PPOSS-1_ETC.pdf
