IR2E03 16-Dot LED Display Driver

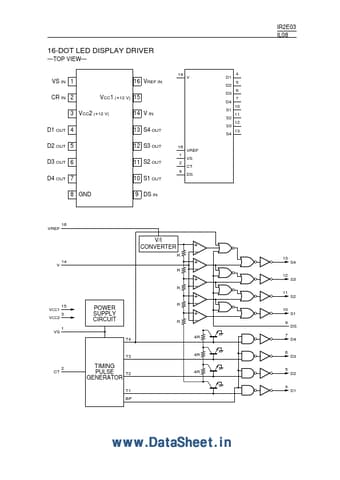

IR2E03 IL08 16-DOT LED DISPLAY DRIVER TOP VIEW 14 V D1 D2 D3 D4 S1 S2 S3 S4 16 1 4 5 6 7 10 11 12 13 VS IN 1 CR IN 2 16 VREF IN VCC1 (+12 V) 15 14 V IN 13 S4 OUT 12 S3 OUT 11 S2 OUT 10 S1 OUT 9 DS IN 3 VCC2 (+12 V) D1 OUT 4 D2 OUT 5 D3 OUT 6 D4 OUT 7 8 GND VREF VS CT DS 2 9 VREF 16 V/I CONVERTER R V 14 R + _ + _ + _ + _ + _ 4R 13 S4 12 S3 R 11 S2 VCC1 VCC2 VS 15 3 1 POWER SUPPLY CIRCUIT R 10 9 7 S1 DS D4 R T4 T3 2 4R 6 D3 CT TIMING PULSE GENERATOR .

IR2E03 Datasheet (17.82 KB)

IR2E03 Datasheet Preview — Preview of IR2E03 PDF

Datasheet Details

Part number:

IR2E03

Manufacturer:

ETC

File Size:

17.82 KB

Description:

16-dot led display driver.
