IS6030 - OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC

Product Overview

Datasheet Details

Part number	IS6030
Manufacturer	ETC
File Size	80.93 KB
Description	OPTICALLY COUPLED BILATERAL SWITCH NON-ZERO CROSSING TRIAC
Datasheet	IS6030 Datasheet
Note	This datasheet PDF includes multiple part numbers: IS6030, IS6003. Please refer to the document for exact specifications by model.

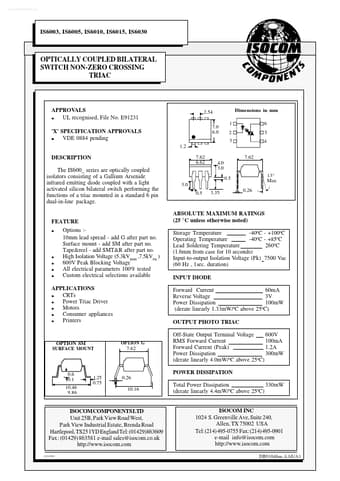

Additional preview pages of the IS6030 datasheet.

Product details

Description

The IS600_ series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a light activated silicon bilateral switch performing the functions of a triac mounted in a standard 6 pin dual-in-line package.
