IS605, IS606, (IS605 / IS606) SCR-OUTPUT OPTOCOUPLER

www.DataSheet4U.com IS605, IS606 PHOTON COUPLED ISOLATOR Ga As INFRARED EMITTING DIODE & LIGHT ACTIVATED SCR APPROVALS l UL recognised, File No.E9.
The IS605, IS606 are optically coupled isolators consisting of infrared light emitting diode and a light activated silicon controlled rectifier in a s.

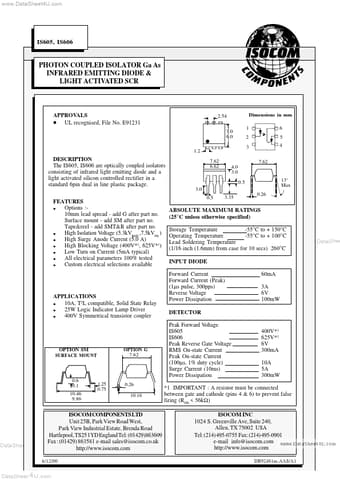

datasheet Preview Page 1 from Datasheet4u.com

IS606_IsocomComponents.pdf

IS605 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS605, IS606. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS605, IS606

Manufacturer:

Isocom Components

File Size:

234.88 KB

Description:

(IS605 / IS606) SCR-OUTPUT OPTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: IS605, IS606.
Please refer to the document for exact specifications by model.

Features

* l Options :ABSOLUTE MAXIMUM RATINGS 10mm lead spread - add G after part no. (25°C unless otherwise specified) Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. Storage Temperature -55°C to + 150°C l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) Operating Temperature -55°C to +

Applications

* l 10A, T2L compatible, Solid State Relay l 25W Logic Indicator Lamp Driver l 400V Symmetrical transistor coupler OPTION SM SURFACE MOUNT OPTION G 7.62 0.6 0.1 10.46 9.86 1.25 0.75 0.26 10.16
* 1 IMPORTANT : A resistor must be connected between gate and cathode (pins 4 & 6) to prevent false
