IS620 - OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC

Product Overview

Datasheet Details

Part number	IS620
Manufacturer	ETC
File Size	37.74 KB
Description	OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC
Datasheet	IS620 Datasheet

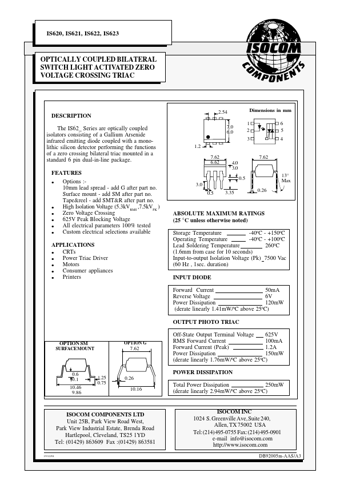

Additional preview pages of the IS620 datasheet.

Product details

Description

The IS62_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector performing the functions of a zero crossing bilateral triac mounted in a standard 6 pin dual-in-line package.

Features

l 2.54 7.0 6.0 1.2 7.62 6.62 Dimensions in mm 1 2 3 6 5 4 7.62 4.0 3.0 0.5 13° Max 0.26 l l l l l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. High Isolation Voltage (5.3kVRMS ,7.5kVPK ) Zero Voltage Crossing 625V Peak Blocking Voltage All electrical parameters 100% tested Custom electrical selections available 3.0 0.5 3.35.
