IS62C1024 Datasheet - ISSI

IS62C1024 128K x 8 HIGH-SPEED CMOS STATIC RAM

The ISSI IS62C1024 is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI's high- performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE1 is HIGH or C.

IS62C1024 Features

* High-speed access time: 35, 45, 55, 70 ns

* Low active power: 450 mW (typical)

* Low standby power: 500 µW (typical) CMOS standby

* Output Enable (OE) and two Chip Enable (CE1 and CE2) inputs for ease in applications

* Fully static operation: no clock or ref

IS62C1024 Datasheet (101.80 KB)

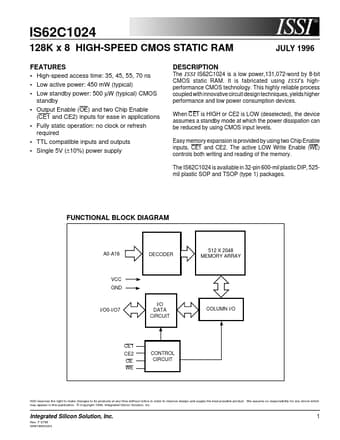

Preview of IS62C1024 PDF
IS62C1024 Datasheet Preview Page 2 IS62C1024 Datasheet Preview Page 3

Datasheet Details

Part number:

IS62C1024

Manufacturer:

ISSI

File Size:

101.80 KB

Description:

128k x 8 high-speed cmos static ram.
