IS62C1024AL 128K x 8 LOW POWER CMOS STATIC RAM

IS62C1024AL Description

IS62C1024AL IS65C1024AL 128K x 8 LOW POWER CMOS STATIC RAM .
The ISSI IS62C1024AL/IS65C1024AL is a low power, 131,072word by 8-bit CMOS static RAM.

IS62C1024AL Features

* High-speed access time: 35, 45 ns
* Low active power: 100 mW (typical)
* Low standby power: 20 µW (typical) CMOS standby www. DataSheet4U. com

IS62C1024AL Applications

* Fully static operation: no clock or refresh required
* TTL compatible inputs and outputs
* Single 5V (±10%) power supply
* Commercial, Industrial, and Automotive temperature ranges available
* Standard Pin Configuration:
* 32-pin SOP/ 32-pin TSOP (Ty

📥 Download Datasheet

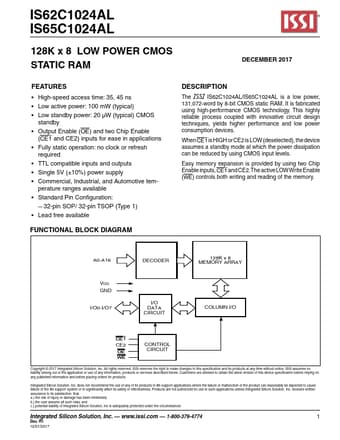

Preview of IS62C1024AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62C1024AL
Manufacturer
ISSI
File Size
250.30 KB
Datasheet
IS62C1024AL_ISSI.pdf
Description
128K x 8 LOW POWER CMOS STATIC RAM
