IS62C5128BL - 512K x 8 HIGH-SPEED CMOS STATIC RAM

Product Overview

ISSI

Datasheet Details

Part number	IS62C5128BL
Manufacturer	ISSI
File Size	353.38 KB
Description	512K x 8 HIGH-SPEED CMOS STATIC RAM
Datasheet	IS62C5128BL Datasheet

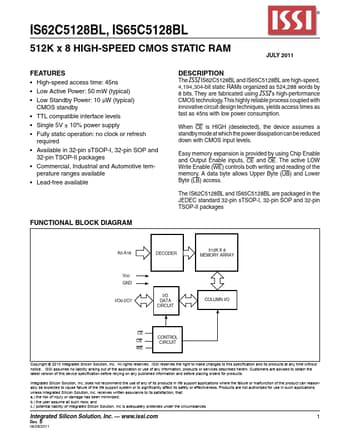

Additional preview pages of the IS62C5128BL datasheet.

Product details

Description

The ISSI IS62C5128BL and IS65C5128BL are high-speed, 4,194,304-bit static RAMs organized as 524,288 words by 8 bits.They are fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 45ns with low power consumption.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provided

Features

High-speed access time: 45ns.
Low Active Power: 50 mW (typical).
Low Standby Power: 10 mW (typical) CMOS standby.
TTL compatible interface levels.
Single 5V ± 10% power supply.
Fully static operation: no clock or refresh required.
Available in 32-pin sTSOP-I, 32-pin SOP and 32-pin TSOP-II packages.
Commercial, Industrial and Automotive temperature ranges available.
Lead-free available FUNC.
