L9110 - Motor Control Driver

Name: L9110
SKU: L9110-1587648

📥 Download Datasheet

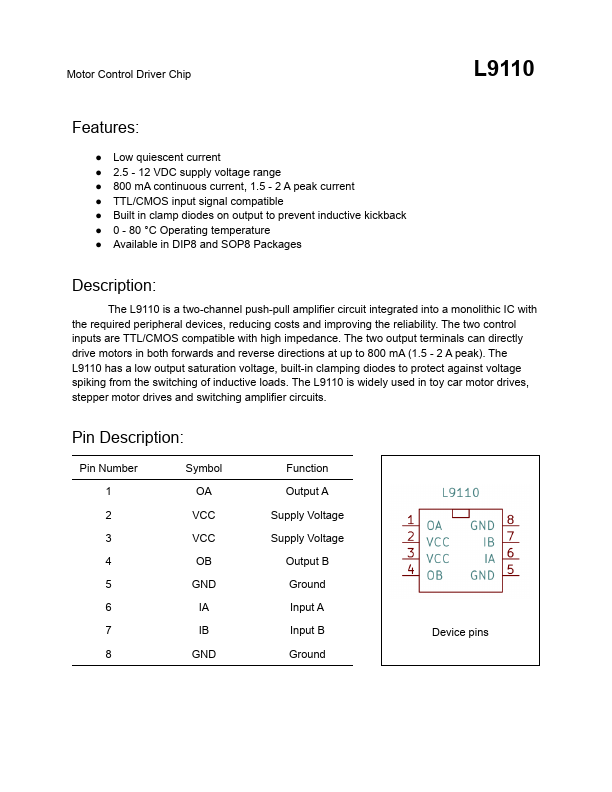

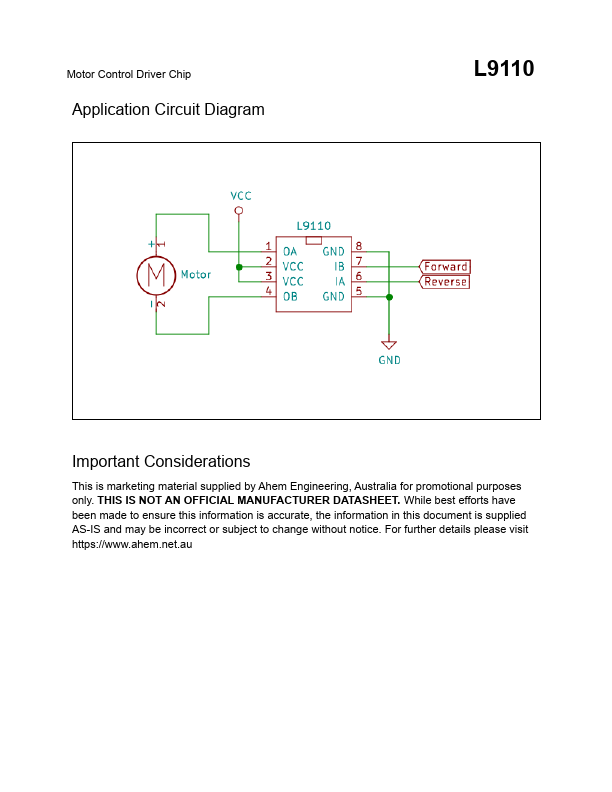

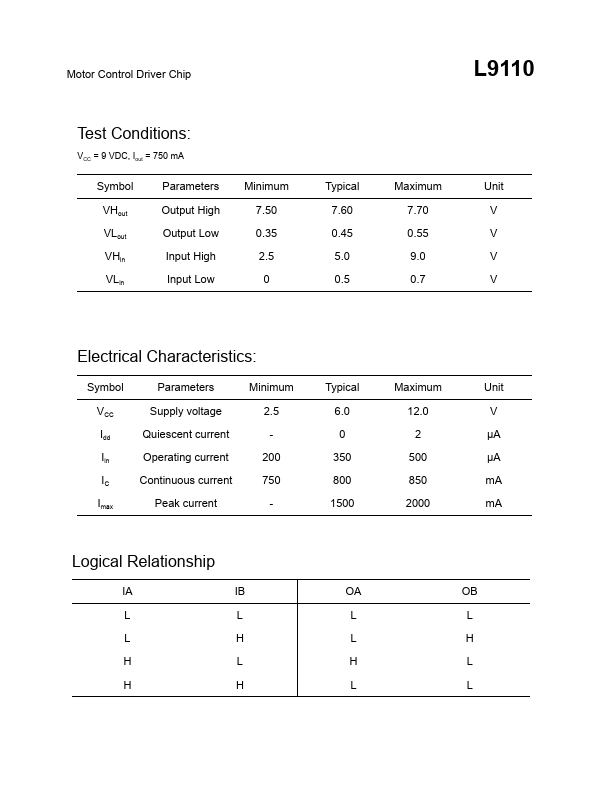

L9110 Datasheet Preview — Preview of L9110 PDF

Datasheet Details

Part number	L9110
Manufacturer	ETC
File Size	76.60 KB
Description	Motor Control Driver
Datasheet	L9110-ETC.pdf

L9110 Product details

Description

The L9110 is a two-channel push-pull amplifier circuit integrated into a monolithic IC with the required peripheral devices, reducing costs and improving the reliability.

Features

Low quiescent current.
2.5 - 12 VDC supply voltage range.
800 mA continuous current, 1.5 - 2 A peak current.
TTL/CMOS input signal compatible.
Built in clamp diodes on output to prevent inductive kickback.
0 - 80 °C Operating temperature.
Available in DIP8 and SOP8 Packages.
