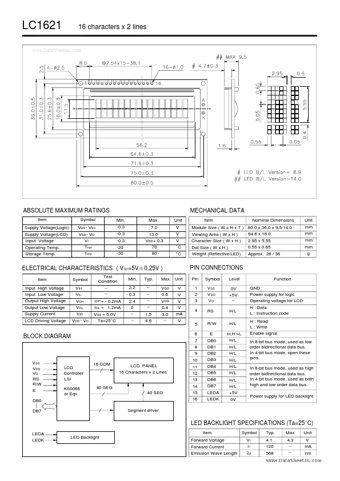

LC1621 16 characters x 2 lines www.DataSheet4U.com ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Character Size ( W x H ) Dot Size ( W x H ) Weight (Reflective/LED) Nominal Dimensions 80.0 x 36.0 x 9.5/14.0 64.6 x 16.0 2.95 x 5.55 0.55 x 0.65 App.
