LC1621-LY Datasheet - Laurel

LC1621-LY LCD

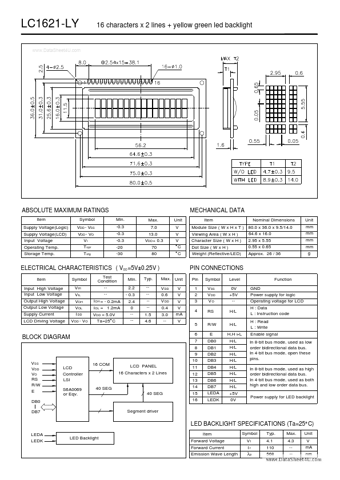

LC1621-LY www.DataSheet4U.com 16 characters x 2 lines + yellow green led backlight ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V °C °C MECHANICAL DATA Item Nominal Dimensions Unit mm mm mm mm g Module Size ( W x H x T ) 80.0 x 36.0 x 9.5/14.0 64.6 x 16.0 Viewing Area ( W x H ) 2.95 x 5.55 Character Size ( W x H ) 0.55.

LC1621-LY Datasheet (60.30 KB)
