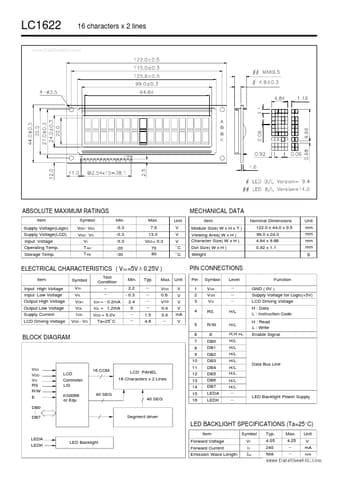

LC1622 16 characters x 2 lines www.DataSheet4U.com ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -30 Max. 7.0 13.0 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Module Size( W x H x T ) Viewing Area( W x H ) Character Size( W x H ) Dot Size( W x H ) Weight Nominal Dimensions 122.0 x 44.0 x 9.5 99.0 x 24.0 4.84 x 9.66 0.92 x 1.1 Unit mm mm mm mm g C EL.
