LP3301 Datasheet, Converter, ETC

LP3301 Features

  • Converter High Efficiency: 85% 1.5MHz Fixed-Frequency PWM Operation 36V 500mA Integrated switch Shutdown Supply Current:<1uA Available in SOT23-5 Package Built-in Over Voltage Protection of 29V M

PDF File Details

Part number:

LP3301

Manufacturer:

ETC

File Size:

222.46kb

Download:

📄 Datasheet

Description:

1.5mhz step-up dc/dc converter. The LP3301 is a 1.5MHz PWM boost switching regulator designed for constantVoltage driver applications. The LP3301 implements a consta

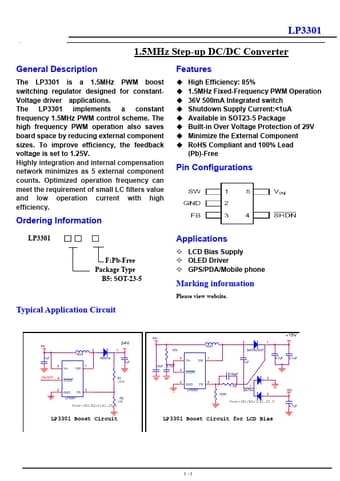

Datasheet Preview: LP3301 📥 Download PDF (222.46kb)
Page 2 of LP3301 Page 3 of LP3301

LP3301 Application

  • Applications The LP3301 implements a constant frequency 1.5MHz PWM control scheme. The high frequency PWM operation also saves board space by reduc
