LP3301S Datasheet, Converter, Lowpowersemi

LP3301S Features

  • Converter High Efficiency: 95%   1.2MHzFixed-Frequency PWM Operation Maximum Output Voltage up to 30V Guaranteed 13V/400mA Output with 5V input Operating Range : 2.7V to 5.5V Shutdown Supply Curr

PDF File Details

Part number:

LP3301S

Manufacturer:

Lowpowersemi

File Size:

535.13kb

Download:

📄 Datasheet

Description:

Boost converter. The LP3301S is a 1.2MHz PWM boost switching regulator designed for constant-voltage boost applications. The LP3301S can drive a strin

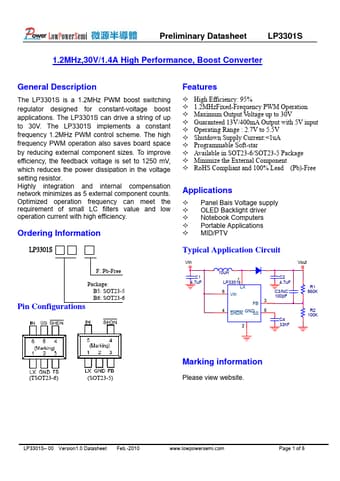

Datasheet Preview: LP3301S 📥 Download PDF (535.13kb)
Page 2 of LP3301S Page 3 of LP3301S

LP3301S Application

  • Applications The LP3301S can drive a string of up to 30V. The LP3301S implements a constant frequency 1.2MHz PWM control scheme. The high frequency
