LP3302 Datasheet, Regulator, Lowpowersemi

LP3302 Features

  • Regulator
  • High Efficiency: 93%
  • 1MHz Fixed-Frequency PWM Operation
  • Maximum Output Voltage up to 29V
  • Operating Range : 2.7V to 6V
  • Shutdown Supply C

PDF File Details

Part number:

LP3302

Manufacturer:

Lowpowersemi

File Size:

901.93kb

Download:

📄 Datasheet

Description:

Constant current switching regulator. The LP3302 is a high frequency, asynchronous boost converter for constant current white LED driver applications. The internal MOSFET

Datasheet Preview: LP3302 📥 Download PDF (901.93kb)

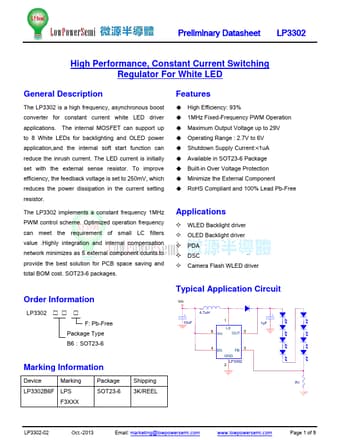

Page 2 of LP3302 Page 3 of LP3302

LP3302 Application

  • Applications The internal MOSFET can support up to 8 White LEDs for backlighting and OLED power application,and the internal soft start function ca
