MOC3042, MOC3040 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC

MOC3042 Description

MOC3040, MOC3041, MOC3042, MOC3043 MOC3040X, MOC3041X, MOC3042X, MOC3043X OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TR.
The MOC304_ Series are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode coupled with a monolithic silicon detector.

MOC3042 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Zero Voltage Crossing l 400V Peak Blocking Voltage l All electrical parameters 100% tested l Custom electrical selections avai

MOC3042 Applications

* l CRTs l Power Triac Driver l Motors l Consumer appliances l Printers OPTION SM SURFACE MOUNT OPTION G 7.62 0.6 0.1 10.46 9.86 1.25 0.75 0.26 10.16 Total Power Dissipation 250mW (derate linearly 2.94mW/0C above 250C) ISOCOM COMPONENTS LTD Unit 25B, Park View Road West, Park View Industrial Est

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MOC3042, MOC3040. Please refer to the document for exact specifications by model.

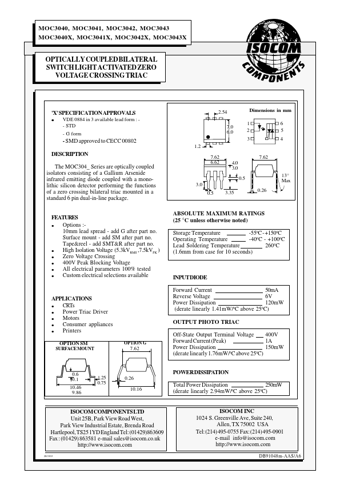

datasheet Preview Page 2 datasheet Preview Page 3
