MOC3041M, MOC3031M, 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER

6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER OUTPUT (250/400 VOLT PEAK) MOC3031M MOC3032M MOC3033M MOC3041M MOC3042M MOC3043M .
The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the functi.

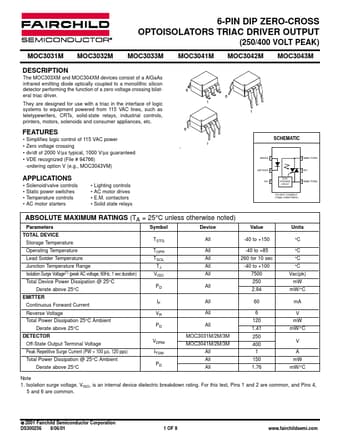

datasheet Preview Page 1 from Datasheet4u.com

MOC3031M_FairchildSemiconductor.pdf

MOC3041M Datasheet Preview — This datasheet PDF includes multiple part numbers: MOC3041M, MOC3031M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MOC3041M, MOC3031M

Manufacturer:

Fairchild Semiconductor

File Size:

394.08 KB

Description:

6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER

Note:

This datasheet PDF includes multiple part numbers: MOC3041M, MOC3031M.
Please refer to the document for exact specifications by model.

Features

* Simplifies logic control of 115 VAC power
* Zero voltage crossing
* dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed

Applications

* Solenoid/valve controls
* Static power switches
* Temperature controls
* AC motor starters
* Lighting controls
* AC motor drives
* E. M. contactors
* Solid state relays 6 6 1 6 1 1 SCHEMATIC ANODE 1 6 MAIN TERM. CATHODE 2 N/C 3
