MOC3042M

6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER

MOC3042M Features

* Simplifies logic control of 115 VAC power

* Zero voltage crossing

* dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed

* VDE recognized (File # 94766) -ordering option V (e.g., MOC3043VM) APPLICATIONS

* Solenoid/valve controls

* Static power switches

MOC3042M General Description

The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered fr.

MOC3042M Datasheet (384.91 KB)

Preview of MOC3042M PDF

Datasheet Details

Part number:

MOC3042M

Manufacturer:

Fairchild Semiconductor

File Size:

384.91 KB

Description:

6-pin dip zero-cross optoisolators triac driver.

📁 Related Datasheet

MOC3042 6-Pin DIP Zero-Cross Optoisolators Triac (Motorola)

MOC3042 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)

MOC3042M 6-Pin DIP Zero-Cross Triac Driver Output Optocoupler (ON Semiconductor)

MOC3040 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)

MOC3041 6-Pin DIP Zero-Cross Optoisolators Triac (Motorola)

MOC3041 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)

MOC3041M 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER (Fairchild Semiconductor)

MOC3041M 6-Pin DIP Zero-Cross Triac Driver Output Optocoupler (ON Semiconductor)

MOC3043 6-Pin DIP Zero-Cross Optoisolators Triac (Motorola)

MOC3043 OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)

TAGS

MOC3042M 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER Fairchild Semiconductor

Image Gallery

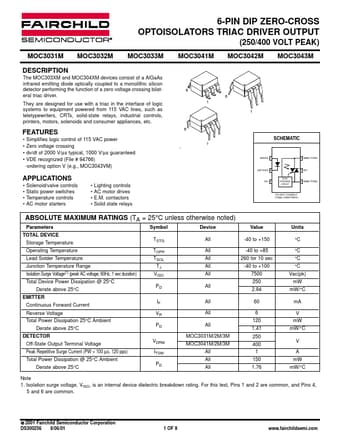

MOC3042M Datasheet Preview Page 2 MOC3042M Datasheet Preview Page 3
