N25, Heavy Duty Incremental Rotary Shaft Encoder

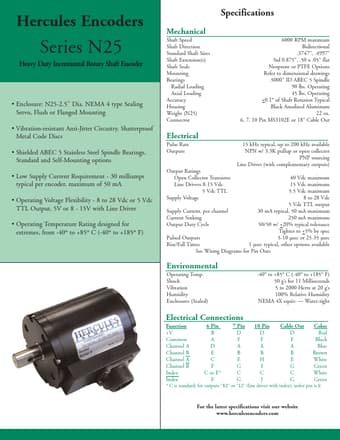

www.DataSheet4U.com Hercules Encoders Specifications Mechanical Shaft Speed Shaft Direction Standard Shaft Sizes Shaft Extension(s) Shaft Seals Mounting Bearings Radial Loading Axial Loading Accuracy Housing Weight (N25) Connector 6000 RPM maximum Bidirectional .3747'', .4997" Std 0.875", .50 x .05" flat Neoprene or PTFE Options Refer to dimensional drawings .5000" ID ABEC 5 Spindle 90 lbs.

Operating 45 lbs.

Operating +0.1º of Shaft Rotation Typical Black Anodized Aluminum 22 oz.

6, 7, 10 Pin
