N2520ML080 Phase Control Thyristor

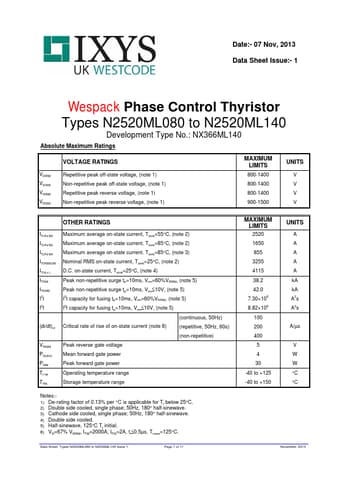

Date:- 07 Nov, 2013 Data Sheet Issue:- 1 Wespack Phase Control Thyristor Types N2520ML080 to N2520ML140 Development Type No.: NX366ML140 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 800-1400 800-1400 800-1400 900-1500 UNITS V V V V OTHER RATINGS IT(AV)M IT(AV)M IT(AV)M IT(RMS)M IT(.
