N2500VC120 Phase Control Thyristor

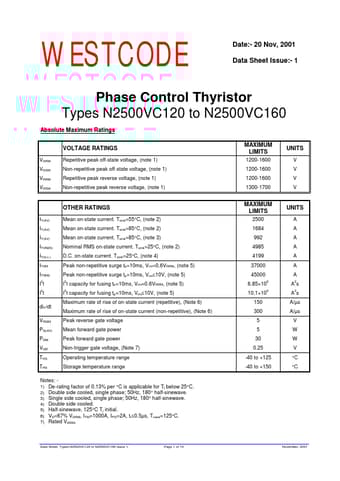

WESTCODE Date:- 20 Nov, 2001 Data Sheet Issue:- 1 Phase Control Thyristor Types N2500VC120 to N2500VC160 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 1200-1600 1200-1600 1200-1600 1300-1700 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t diT/dt VRGM PG(AV) P.

N2500VC120-IXYS.pdf
