4 INPUT / 1 OUTPUT STEREO AUDIO SELECTOR

NJM2750 Features

* q Operating Voltage (4.7 to 13V) q 4 Input / 1 Output Audio Selectors q Dual Channel for Stereo Use q Low Output Noise (-110dBV typ.) q Low Distortion (0.005% typ.) q Bipolar Technology q Package Outline (DMP16) s BLOCK DIAGRAM s PIN CONFIGURATION IN1a 1 16 15 V+ GND OUTa V+ IN3a Vref OUTb (N.

NJM2750 General Description

The NJM2750 is 4 Input / 1 Output Stereo Audio Selector. Based on the internal Switch OP-AMP technology, the NJM2750 has lower Output Noise, lower Distortion and higher Channel Separation than the ordinary Multiplexers or Analogue Switches. The NJM2750 is suitable for any kinds of audio equipments, .

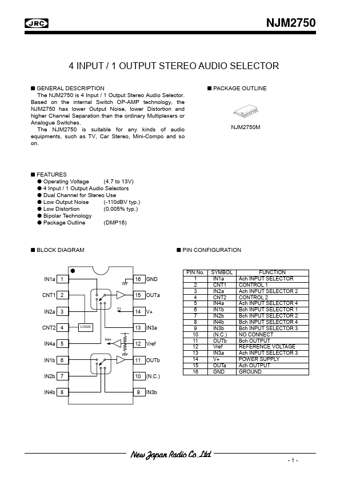

NJM2750 Datasheet (158.28 KB)

Preview of NJM2750 PDF

Datasheet Details

Part number:

NJM2750

Manufacturer:

ETC

File Size:

158.28 KB

Description:

4 input / 1 output stereo audio selector.
