NJM2754

4in-1out Audio Selector

NJM2754 Features

* 4in-1out Stereo Audio Selector

* Operating Voltage

* Operating Current

* Common mode rejection ratio

* Maximum Output Voltage

* Supply Voltage Rejection Ratio

* Total Harmonic Distortion

* Noise Output Voltage

* Bipolar Technology

NJM2754 General Description

The NJM2754 is 4In-1out stereo audio Selector with ground noise isolation amplifiers. It contains dual channel differential amplifier. It is developed for those car audio applications where long connections between head unit and other components are necessary and ground noise has to be eliminated. !.

NJM2754 Datasheet (235.03 KB)

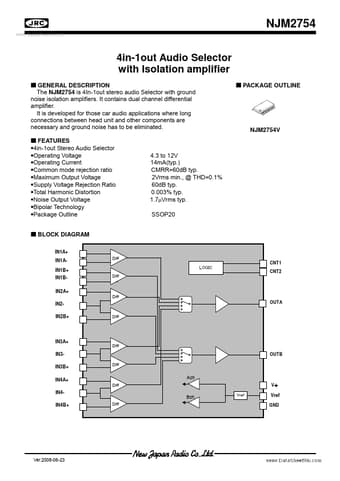

Preview of NJM2754 PDF

Datasheet Details

Part number:

NJM2754

Manufacturer:

NJR Corporation

File Size:

235.03 KB

Description:

4in-1out audio selector.
