OM5233

(OM5201 - OM52xx) HERMETIC JEDEC TO-257AA HIGH EFFICIENCY

OM5233 Features

* Very Low Forward Voltage Very Fast Recovery Time Hermetic Metal Package, JEDEC TO-257AA Outline Low Thermal Resistance Isolated Package High Surge Available Screened To MIL-S-19500, TX, TXV And S Levels DESCRIPTION This series of

OM5233 General Description

This series of products in a hermetic package is specifically designed for use at power switching frequencies in excess of 100 kHz. The series combines two high efficiency devices into one package, simplifying installation, reducing heat sink hardware, and the need to obtain matched components. Thes.

OM5233 Datasheet (145.52 KB)

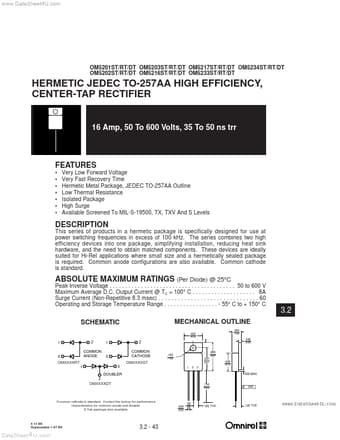

Preview of OM5233 PDF

Datasheet Details

Part number:

OM5233

Manufacturer:

ETC

File Size:

145.52 KB

Description:

(om5201 - om52xx) hermetic jedec to-257aa high efficiency.
www.DataSheet4U.com OM5201ST/RT/DT OM5203ST/RT/DT OM5217ST/RT/DT OM5234ST/RT/DT OM5202ST/RT/DT OM5216ST/RT/DT OM5233ST/RT/DT HERMETIC JEDEC TO-257AA.
