OM5232

CMOS single-chip 8-bit microcontroller

OM5232 Features

* 80C51 central processing unit

* 8k × 8 ROM, expandable externally to 64k bytes

* 256 × 8 RAM, expandable externally to 64k bytes

* Two standard 16-bit timer/counters

* Four 8-bit I/O ports

* Two open drain I/O’s (P1.6, P1.7)

* Full-duplex UA

OM5232 General Description

The OM5232 Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The OM5232 has the same instruction set as the 80C51. See also:

* OM5202

* ROMless version

* OM5234

* 16K bytes mask progr.

OM5232 Datasheet (175.55 KB)

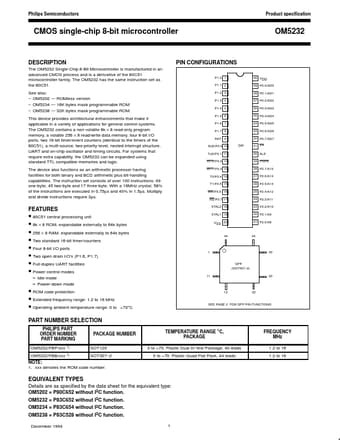

Preview of OM5232 PDF

Datasheet Details

Part number:

OM5232

Manufacturer:

NXP ↗

File Size:

175.55 KB

Description:

Cmos single-chip 8-bit microcontroller.
