OM5234, CMOS single-chip 8-bit microcontrollers

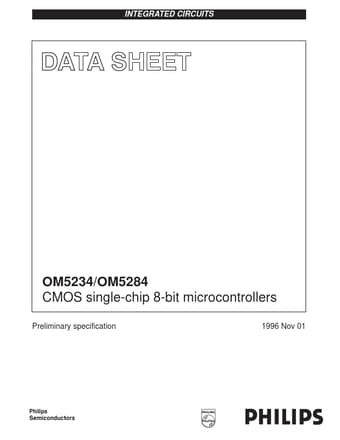

INTEGRATED CIRCUITS OM5234/OM5284 CMOS single-chip 8-bit microcontrollers Preliminary specification 1996 Nov 01 Philips Semiconductors Philips Semi.
The OM5234 and OM5284 single-chip 8-bit microcontrollers are manufactured in an advanced CMOS process and are derivatives of the 80C51 microcontroller.

datasheet Preview Page 1 from Datasheet4u.com

OM5234_PhilipsSemiconductors.pdf

OM5234 Datasheet Preview — Preview of OM5234 PDF

Datasheet Details

Part number:

OM5234

Manufacturer:

NXP ↗

File Size:

106.21 KB

Description:

CMOS single-chip 8-bit microcontrollers

Features

* 80C51 central processing unit
* 6k × 8 ROM
* 256 × 8 RAM
* Two standard 16-bit timer/counters
* Four 8-bit I/O ports
* Full-duplex UART facilities
* Power control modes
* Idle mode
* Power-down mode
* ROM code protec

Applications

* Unless specifically stated otherwise, all references to OM5234 apply equally to OM5284. The OM5234 contains a non-volatile 16k × 8 read-only program memory, a volatile 256 × 8 read/write data memory, four 8-bit I/O ports, two 16-bit timer/event counters (identical to the timers of the 80C51), a mul
